Transmission Machine For High Torque Low Speed Driving

Product Description

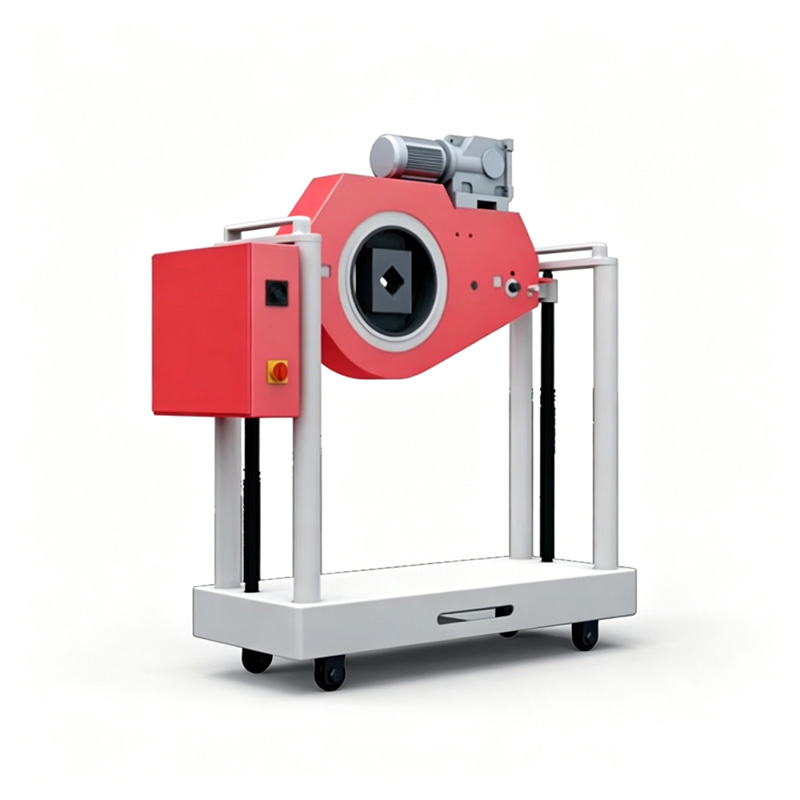

The transimission machine is a highly specialized and expertly engineered driving device used for the cylinder and doffer of the woollen card when wrapping the card clothing. By enabling the cylinder and doffer to rotate at low speed with high torque, it provides the precise, unyielding mechanical force required for demanding textile processing environments. This device employs a high-speed motor to drive a worm gear reducer, which in turn drives a gear set to achieve high torque and low-speed output rotation. Hearing the steady, controlled hum of the motor assures operators of its consistent power delivery, while the heavy-duty metallic casing feels solid and cool to the touch, reflecting its industrial-grade construction. The entire system is built to handle immense operational stress, ensuring that the critical wrapping process is executed with absolute uniformity and precision.

Precision Control and Dynamic Speed Adjustment

Operational accuracy is paramount when handling delicate yet massive textile machinery components. To meet these stringent requirements, the motor is equipped with a frequency converter, allowing speed adjustment within a certain range. This vital feature means operators can fine-tune the rotational pace to match the exact requirements of the wrapping process, avoiding sudden jerks, material stretching, or stalling. Furthermore, the connection between the drive and the cylinder and doffer adopts a jaw-type design, which achieves automatic lifting and lowering of the main machine through the motor-driven screw, thus changing the jaw height. The smooth, automated vertical movement eliminates the need for strenuous manual lifting, allowing for precise alignment with a simple button press, significantly enhancing overall operational efficiency.

Unyielding Safety and Anti-Reversal Mechanisms

When dealing with massive rotational forces and heavy loads, safety and equipment protection cannot be compromised. To address this, the reducer uses worm gears to prevent the rollers from reversing when stopped. This built-in self-locking mechanism provides an immediate, secure hold the moment power is cut, protecting both the machinery and the operators from unexpected, dangerous rollbacks. The internal gearing is specifically designed to absorb operational shocks and vibrations, ensuring that even under maximum load, the system remains entirely stable. This robust anti-reversal design significantly extends the lifespan of the equipment by mitigating the mechanical stress associated with sudden halts, offering a highly reliable solution for continuous industrial operations.

Versatile Compatibility and Clamping Capability

Industrial facilities rarely operate with a single standardized shaft size, making adaptability a critical asset on the factory floor. Because of its innovative jaw-type connection, it can effectively clamp and drive shafts of different models, diameters, and heights. The metallic jaws close with a firm, unyielding grip, ensuring zero slippage during operation. Whether adapting to older machinery or modern setups, this flexible clamping system reduces the need for multiple specialized tools and adapters.

• Broad Shaft Compatibility: Securely grips varying diameters and profiles without requiring complex, time-consuming mechanical adjustments.

• Automated Height Adaptability: The motor-driven screw system ensures the drive aligns perfectly with shafts at different elevations, accommodating diverse machine architectures.

• Secure Force Transmission: The precision-engineered jaw mechanism translates rotational energy directly to the target component with minimal energy loss or vibration.

Mobility, Ergonomics, and Structural Design

Despite its powerful capabilities and heavy-duty construction, this device is designed as a handcart type, which is easy to move, convenient to operate, and has high transmission efficiency. Mounted on smooth-rolling, industrial-grade casters, the unit can be effortlessly repositioned across the factory floor by a single operator. The ergonomic handle provides a comfortable, secure grip, while the balanced weight distribution prevents tipping during transit. This exceptional mobility drastically reduces downtime during maintenance or when switching the drive unit between different carding machines, streamlining the overall workflow and significantly reducing labor fatigue for the facility's workforce.

Superior Startup Stability and Energy Efficiency

Initiating movement in heavy industrial cylinders requires a delicate balance of power and control to prevent mechanical wear. This transmission machine boasts exceptional low-speed startup performance, characterized by exceptionally low rotational inertia. When engaged, the transition from standstill to operational speed is fluid and highly controlled, completely devoid of the harsh mechanical clanking often associated with standard heavy-duty drives. This smooth operation not only protects the structural integrity of the woollen card components but also optimizes energy consumption. The optimized gear interactions deliver high transmission efficiency that translates directly to lower operational power costs over the machine's extended lifecycle.

Core Applications and Operational Summary

Tailored specifically for the rigorous demands of textile production, this transmission machine excels in environments requiring absolute reliability and consistent force application. Its primary function demands a precise combination of high torque and low speed that standard motors simply cannot provide. By maintaining a consistent rotational force, it ensures that the card clothing is wrapped tightly and uniformly, which is directly correlated to the final output quality of the carding process. The integration of advanced motor control and robust mechanical design makes it an indispensable asset for modern textile processing facilities.
