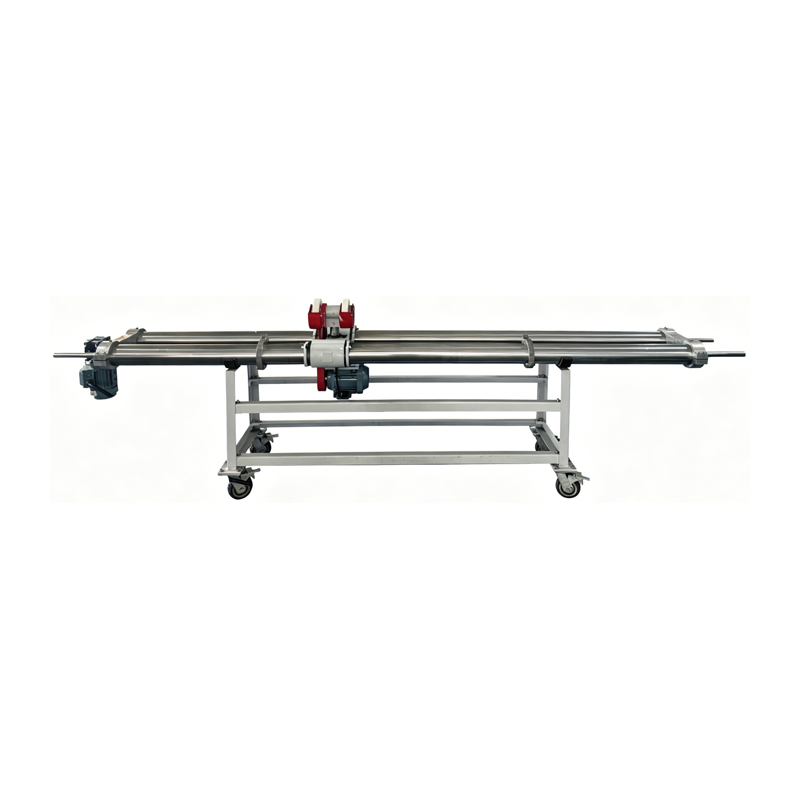

Two seamless steel pipes serve as guide rails, and a high-speed motor drives the grinding wheel spindle to rotate. The grinding wheel assembly is mounted on the guide rail. The motor is equipped with a speed reducer to drive a precision ball screw for reciprocating motion, which can control each roller of the carding machine covered with flexible card clothing. (Such as: cylinder, doffer, work roller, stripping roller, etc.) for grinding. The precision speed reducer plays a critical role in this setup, translating the raw rotational power of the motor into controlled, deliberate lateral movement. This ensures the abrasive wheel engages the card clothing at the exact optimal angle required to restore the wire's original profile. The physical interaction between the abrasive elements and the metallic wires generates a consistent, balanced auditory hum, indicating a stable material removal rate across the entire surface area.
During operation, the mechanism allows for precise control over grinding depth and contact pressure. Facility operators can fine-tune these variables to match the specific wear patterns of different rollers. This targeted approach effectively restores the side flanks and tips of the card clothing without causing excessive wear, safeguarding the delicate base structure of the wire from thermal damage or mechanical distortion. Furthermore, as the grinding wheel engages the metal wires, it inevitably produces fine metallic dust. To address this, the system supports integrated dust extraction and debris clearance functions. This immediate removal of airborne particles prevents secondary contamination of the carding machine components and surrounding textile fibers, maintaining an impeccably clean operational environment that protects both the machinery and the facility personnel. The reciprocating motion driven by the ball screw ensures that the grinding wheel traverses the entire length of the roller with absolute uniformity, eliminating the risk of uneven sharpening that could otherwise lead to inconsistent fiber web formation.
The engineering behind this equipment focuses on maximizing operational lifespan and processing accuracy through superior component selection and structural design.
Advanced Material Composition: The rail is made of 40CR seamless steel pipe. After modulation, it is ground with a precision grinder. The surface is electroplated with hard chromium. This rigorous metallurgical treatment grants the components an exceptionally smooth, cool-to-the-touch finish that actively repels industrial contaminants.
Exceptional Wear Resistance: It is characterized by high straightness, high surface hardness, and strong wear resistance of the guide rail. These intrinsic material properties significantly extend the equipment's viability, even when deployed in demanding, continuous-duty environments where airborne lint and metallic particulates are prevalent.
Flawless Motion Control: Precision ball screw is used as the transmission, which has the characteristics of small back clearance, light resistance, high transmission efficiency and stability, smooth and silky operation. By eliminating transmission backlash, the grinding trajectory remains perfectly uniform across every millimeter of the roller.
The synergy between the double stiff rail architecture and the responsive motor drive minimizes mechanical friction. This low-resistance operation guarantees that the machine remains stable during prolonged, intensive grinding cycles, reducing micro-vibrations and ensuring consistent geometric results across the entire width of the processing rollers. The rigid structural integrity prevents deflection under load, meaning the grinding wheel maintains exact contact geometry from one end of the cylinder to the other, translating to an exacting restoration of the card clothing.
This machine is suitable for grinding the card clothing of the woollen carding machine. Beyond its primary function, the versatile design perfectly adapts to various rollers covered with flexible clothing, offering a consolidated maintenance solution for large-scale textile processing facilities. By servicing multiple roller types—ranging from primary cylinders to smaller stripping rollers—with a single unit, facility managers can optimize their equipment investment and reduce the need for specialized, single-purpose sharpening tools taking up valuable floor space.
The modular construction of the grinding apparatus is engineered with daily operational realities in mind. Facility technicians can perform rapid installation, immediate calibration, and routine servicing with minimal physical exertion. The accessible layout of the mechanical components means that preventative maintenance tasks—such as lubricating the ball screw, inspecting the guide rails, or replacing the abrasive wheels—can be completed swiftly without requiring complete machine disassembly. This logical, user-centric design reduces reliance on specialized external labor, lowers ongoing maintenance expenses, and minimizes costly equipment downtime. Ultimately, this ensures that textile production lines can return to peak capacity faster, maximizing overall plant output and preserving the structural integrity of the carding wire for extended production runs.
